612F-050

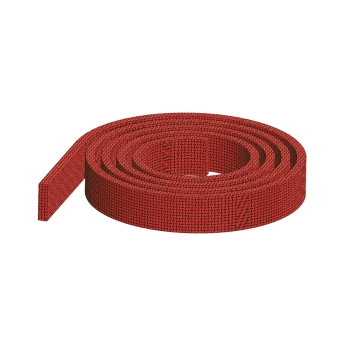

612F Flexible Red Polyester Guide Bearing Tape, 1/8 X 1/2
Part #:
612F-050
Min. Order Qty: 1
Brand: HPSI
HPSI
Flexible Polyester Guide Bearings are rectangular strips made from woven fabric-reinforced polyester resin for hydraulic bearing applications. The material combines a low coefficient of friction with high compressive strength, while the flexible strip can be cut to any length for custom applications. The standard 1/8" radial thickness allows strips to be stacked to achieve different widths. The wall tolerance is ±.002", with a radial thickness ranging from 0.121" to 0.124". Pricing is per linear foot.
| Compressive Strength | : | 16,500 PSI |
| Material | : | Polyester Resin Red |
| Part Number | : | (Prefix)-(Width) |
| Temperature Range | : | -40° to 250°F |
| Tensile Strength | : | 8,500 PSI |
| Thickness | : | 1/8 in |
| Width | : | 1/2 in |
- Woven fabric-reinforced polyester resin provides durable bearing performance
- Low coefficient of friction supports smooth movement
- High compressive strength supports demanding bearing applications
- Rectangular strip can be cut to any length
- Standard 1/8" radial thickness allows stacking for different widths
- ±.002" wall tolerance supports dimensional consistency
- Radial thickness ranges from 0.121" to 0.124"
- Sold by the linear foot for custom-length applications
