614-4004-075

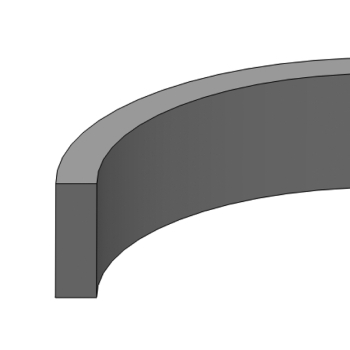

614 Nylon Rod Bearing, 4 X 4-1/2 X 3/4
Part #:
614-4004-075
Min. Order Qty: 1
Brand: HPSI
HPSI
The 614 Nylon Rod Bearing is made from durable nylon and designed to provide guidance and support in hydraulic cylinders. Its low wear rate and non-scoring properties make it well suited for demanding applications, while the solid or split design options provide flexibility for installation and replacement requirements.
| Compressive Strength | : | 35,000 PSI |
| Inside Diameter | : | 4 in |
| Material | : | Glass Filled Nylon |
| Outside Diameter | : | 4-1/2 in |
| Part Number | : | (Prefix)-(ID)-(Width) |
| Temperature Range | : | -40° to 250°F |
| Tensile Strength | : | 27,000 PSI |
| Width | : | 3/4 in |
- Durable nylon construction provides reliable bearing performance
- Low wear rate supports long service life
- Non-scoring properties help protect mating surfaces
- Designed for hydraulic rod applications
- Available in solid or split configurations
- Provides reliable rod guidance and support
- Suitable for heavy-duty hydraulic applications
