CTS-608000
PTFE Capped Piston T-Seal, 7.270 X 8.000 X .750
Part #:
CTS-608000
Min. Order Qty: 1
Brand: HPSI
HPSI

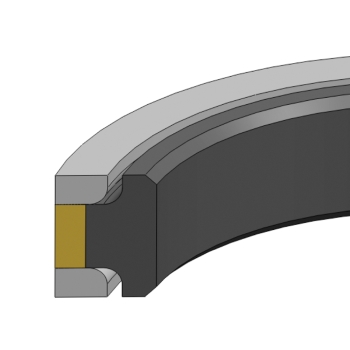

CTS Capped Piston T-Seals are double-acting piston seal assemblies designed for heavy-duty applications. The construction combines a PTFE cap, nylon back-up rings, and a nitrile energizer to provide low friction, excellent extrusion resistance, and stability under high pressures. The durable design supports reliable performance in demanding piston sealing applications. “BR” denotes a bronze-filled PTFE cap. Locking Capped T-Seals and oversized bore diameters are available by request.
| Bore Diameter | : | 8.000 in |
| Groove Diameter | : | 7.270 in |
| Groove Width | : | .750 in |
| Material | : | PTFE/Nylon/Nitrile |
| Part Number | : | (Prefix)-(C/S)(Bore Diameter) |
| Pressure Range | : | 0 TO 6,000 PSI |
| Temperature Range | : | -40° to 220°F |
- PTFE cap provides low-friction sealing performance
- Nylon back-up rings provide extrusion resistance and support
- Nitrile energizer maintains sealing force
- Double-acting design supports bidirectional piston sealing
- Designed for stability under high pressures
- Durable construction suits heavy-duty applications
- BR suffix identifies a bronze-filled PTFE cap
- Locking configurations and oversized bore diameters available by request
