DT-1125
DT Urethane Snap-in Rod Wiper Ring, 1-1/8 X 1-1/2 X 3/16
Brand: HPSI
HPSI

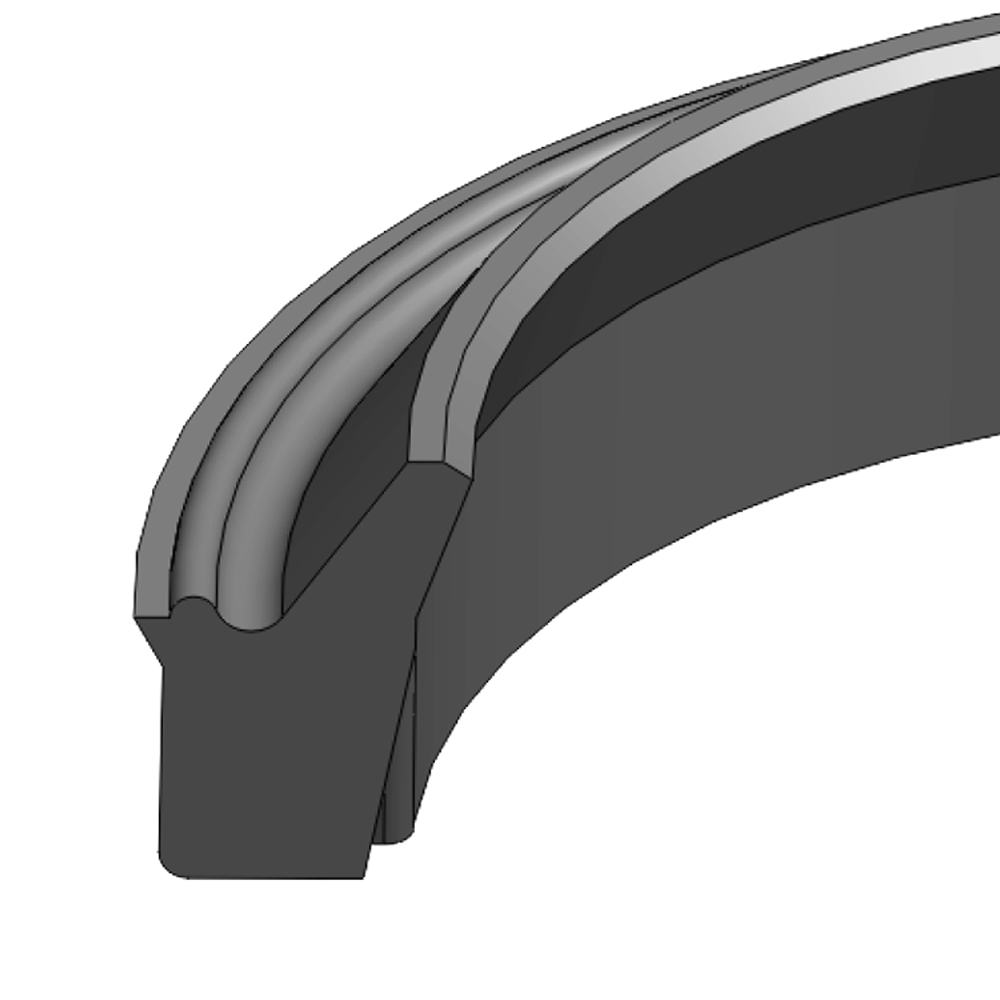

DT wipers are snap-in polyurethane rod wiper seals featuring a shoulder excluder and slotted heel design to deliver effective contaminant removal while maintaining secure groove stability in hydraulic cylinders. The slotted heel allows for easy installation and reduces pressure trapping, while the shoulder excluder provides additional groove interference for improved seal retention. Manufactured from high-wear 95A polyurethane, DT wipers are fully interchangeable with standard D wipers, providing a reliable solution for protecting rod seals and extending cylinder life in demanding environments.
| Height | : | 3/16 in |
| Inside Diameter | : | 1-1/8 in |
| Material | : | Urethane |
| Outside Diameter | : | 1-1/2 in |
| Part Number | : | (Prefix)-(Rod Dia.)-(Base Ht.)-(Material) |
| Style | : | Snap-in |
| Temperature Range | : | -65° TO +220°F |
- Shoulder Excluder Design: Enhances groove retention and stability.
- Slotted Heel: Eases installation and reduces pressure traps.
- Protects rod seals and cylinder components.
- Resists abrasion and extends service life.
- Interchangeable with D Wipers.
