FB-175

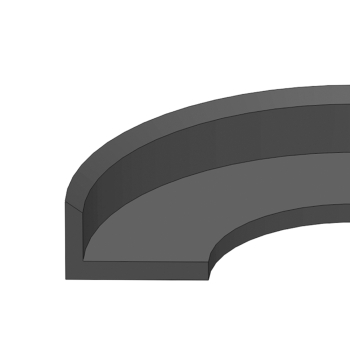

FB Polyester Follower Bearings, 1-1/4 X 1-3/4 X .290
Part #:
FB-175
Min. Order Qty: 1
Brand: HPSI
HPSI
Follower Bearings are designed primarily as bearing components and complement Cascade Vee Sets in hydraulic applications. Made from 60D Hytrel® polyester, they provide durable bearing support for oversized bores. Bore sizes are nominal and designed for bores ranging from +.015" to +.030" over the nominal size. Glass-filled nylon is available upon request.
| Inside Diameter | : | 1-1/4 in |
| Material | : | 60D Polyester |
| Outside Diameter | : | 1-3/4 in |
| Part Number | : | (Prefix)-(Bore Diameter) |
| Temperature Range | : | -65° to 220°F |
| Width | : | .290 in |
- 60D Hytrel® polyester construction provides durable bearing performance
- Designed primarily as bearing components for hydraulic applications
- Complements Cascade Vee Sets
- Nominal bore sizes accommodate oversized bores from +.015" to +.030"
- Glass-filled nylon available upon request
- Provides reliable support for hydraulic sealing assemblies
