HU18-1.62-18-90V
HU 90A Fluorocarbon Homogeneous U-Cup, 1-5/8 X 2 X 3/16
Part #:
HU18-1.62-18-90V
Min. Order Qty: 1
Brand: HPSI
HPSI

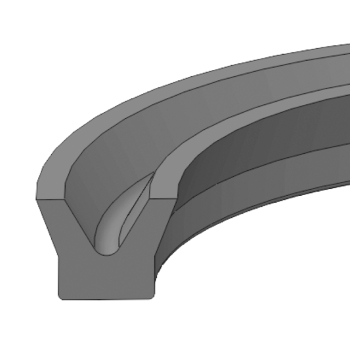

The HU Homogeneous U-Cup is precision molded from 80A Buna-N or 90A fluorocarbon rubber for reliable hydraulic sealing in dynamic applications. Commonly used as piston, rod, and cushion seals in industrial cylinders, the HU U-Cup provides dependable sealing performance across a wide range of operating conditions. Fluorocarbon versions (suffix V) offer enhanced heat resistance for elevated temperature applications.
| Cross Section | : | 3/16 in |
| Height | : | 3/16 in |
| Inside Diameter | : | 1-5/8 in |
| Material | : | 90A Fluorocarbon |
| Outside Diameter | : | 2 in |
| Part Number | : | (Prefix)(C/S)-(ID)-(H)(Material) |
| Pressure Range | : | 0 TO 2,200 PSI |
| Temperature Range | : | -20° to 400°F |
- Precision molded from 90A fluorocarbon rubber
- Excellent heat resistance for elevated temperature applications
- Provides reliable piston, rod, and cushion sealing
- Suitable for industrial hydraulic cylinders
- Delivers dependable dynamic sealing performance
