MCSM-120X99.0X10.5
MCSM 2pc Piston Seal, 120 X 99.0 X 10.0
Part #:
MCSM-120X99.0X10.5
Min. Order Qty: 1
Brand: HPSI
HPSI

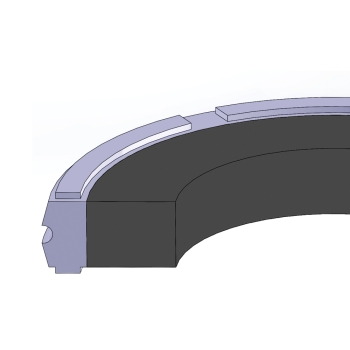

The MCSM piston seal is a compact, double-acting seal designed for efficient performance. It features a urethane sealing ring with a pronounced sealing edge for optimal contact and a rectangular nitrile energizer to prevent twisting within the groove. This seal delivers low friction and ensures smooth operation, even at low linear velocities
| Bore Diameter | : | 120 mm |
| Groove Diameter | : | 99.0 mm |
| Groove Width | : | 10.5 mm |
| Material | : | Urethane/Nitrile |
| Part Number | : | (Prefix)-(ID)X(OD)X(H) |
| Pressure Range | : | 0 TO 5,800 PSI |
| Temperature Range | : | -22° to 212°F |
- MCSM style
- 2pc metric piston seal
- 94A urethane seal
- 70A nitrile loader
