MCTS-105X90X12
MCTS 4pc Piston Seal Assembly, 105 X 90 X 12.0
Part #:
MCTS-105X90X12
Min. Order Qty: 1
Brand: HPSI
HPSI

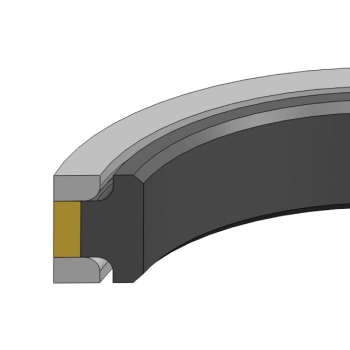

The MCTS 4-Piece Piston Seal is a piston seal assembly featuring a filled PTFE cap energized by a T-shaped nitrile energizer and supported by two split nylon back-up rings. This multi-component design provides low-friction sealing while the back-up rings support the seal against extrusion under high-pressure operating conditions.
| Bore Diameter | : | 105 mm |
| Groove Diameter | : | 90 mm |
| Groove Width | : | 12.5 mm |
| Material | : | PTFE/Nylon/Nitrile |
| Part Number | : | (Prefix)-(OD)X(Groove Dia)X(H) |
| Pressure Range | : | 0 TO 6,000 PSI |
| Temperature Range | : | -20° to 225°F |
- Filled PTFE cap provides low-friction sealing performance
- T-shaped nitrile energizer maintains reliable sealing contact
- Two split nylon back-up rings provide anti-extrusion support
- Four-piece construction combines the cap, energizer, and back-up rings
- Designed for high-pressure hydraulic applications
- Provides reliable dynamic piston sealing performance
