MPH-063
MPH Nitrile Pneumatic Piston Seal, 63 X 53 X 4
Part #:
MPH-063
Min. Order Qty: 1
Brand: HPSI
HPSI

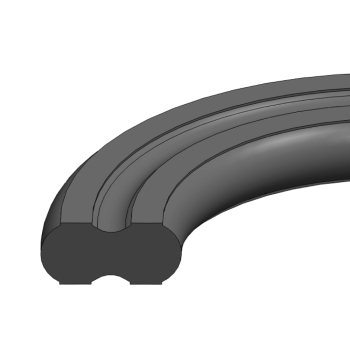

The MPH Pneumatic Piston Seal is a double-acting pneumatic piston seal designed for housings with limited axial height. Its solid body is molded from 70A nitrile to provide reliable sealing performance, particularly at low pressures. The compact profile makes the MPH well suited for pneumatic cylinders and valves where installation space is limited.
| Bore Diameter | : | 63 mm |
| Groove Diameter | : | 53 mm |
| Groove Width | : | 4.0 mm |
| Material | : | Nitrile |
| Part Number | : | (Prefix)-(Bore Diameter) |
| Pressure Range | : | 0 TO 175 PSI |
| Temperature Range | : | -20° to 220°F |
- 70A nitrile construction provides reliable sealing performance
- Double-acting design supports bidirectional pneumatic sealing
- Designed for housings with low axial height
- Solid body construction provides a durable sealing profile
- Performs reliably at low pressures
- Compact design suits space-limited pneumatic applications
- Designed for pneumatic cylinders and valves
