MPS-028-036-05.3
MPS Urethane Loaded Symmetrical U-Seal, 28 X 36 X 5.3
Part #:
MPS-028-036-05.3
Min. Order Qty: 1
Brand: HPSI
HPSI

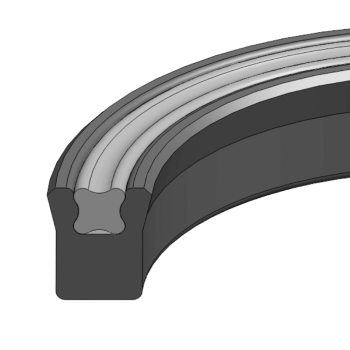

The MPS Loaded Symmetrical U-Seal is a metric polyurethane seal designed for both rod and piston sealing in hydraulic applications. A four-lobed nitrile Quad-Ring® maintains consistent sealing force across the operating pressure range while enhancing low-pressure sealing performance to help prevent leakage ("weeping"). Its symmetrical design allows the same seal to be used interchangeably as a rod or piston seal, while the polyurethane construction provides excellent wear and abrasion resistance.
| Height | : | 5.3 mm |
| Inside Diameter | : | 28 mm |
| Lip Style | : | Type B |
| Material | : | 93A Urethane |
| Outside Diameter | : | 36 mm |
| Part Number | : | (Prefix)-(ID)X(OD)X(H) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -65° to 250°F |
- Symmetrical design allows use as either a rod or piston seal
- Tough polyurethane provides excellent wear and abrasion resistance
- Four-lobed nitrile Quad-Ring® maintains consistent sealing force across the pressure range
- Enhances low-pressure sealing to help prevent leakage ("weeping")
- Metric design for a wide range of hydraulic applications
