MPSA-040F
MPSA 5pc Piston Seal Assembly, 40 X 30 X 12.5
Part #:
MPSA-040F
Min. Order Qty: 1
Brand: HPSI
HPSI

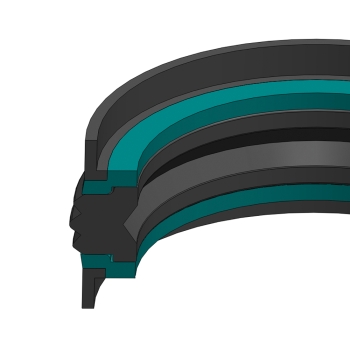

The MPSA double-acting piston seal assembly, originally designed for one-piece pistons, is also adaptable for two-piece pistons. This five-piece assembly is highly efficient for medium-duty applications and includes two split tough polymer support rings and two split L-shaped bearings. Grooves on the bearings ensure proper fluid pressure energization of the rubber sealing element’s multi-lips, while the support ring’s extending lips protect the sealing element from extrusion damage and prevent pressure trapping during operation.
| Bore Diameter | : | 40 mm |
| Groove Diameter | : | 30 mm |
| Groove Width | : | 12.5 mm |
| Material | : | Nitrile/Nylon |
| Part Number | : | (Prefix)-(Size) |
| Pressure Range | : | 0 TO 6,000 PSI |
| Temperature Range | : | -22° to 212°F |
- MPSA style
- 5pc metric piston seal assembly
- Double acting
- 70A nitrile energizer
- Nylon back-ups and bearings
