MPSA-65-080
MPSA-65 3pc Piston Seal Assembly, 80 X 70 X 11
Part #:
MPSA-65-080
Min. Order Qty: 1
Brand: HPSI
HPSI

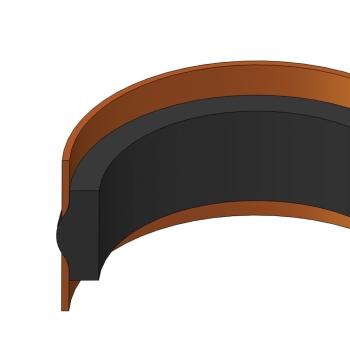

The MPSA-65 3-Piece Piston Seal is a piston seal assembly consisting of a nitrile sealing element and two split acetal bearings. Designed for light-duty hydraulic applications, the three-piece construction provides reliable sealing and piston support. The MPSA-65 can be installed on both one-piece and two-piece pistons.
| Bore Diameter | : | 80 mm |
| Groove Diameter | : | 70 mm |
| Groove Width | : | 11 mm |
| Material | : | Nitrile/Acetal |
| Part Number | : | (Prefix)-(Size) |
| Pressure Range | : | 0 TO 3,000 PSI |
| Temperature Range | : | -22° to 212°F |
- Nitrile sealing element provides reliable sealing performance
- Two split acetal bearings provide piston support
- Three-piece construction combines the seal with two bearings
- Designed for light-duty hydraulic applications
- Compatible with both one-piece and two-piece pistons
- Split bearings support installation and assembly
- Provides reliable hydraulic piston sealing
