MPSB-080
MPSB 3pc Piston Seal Assembly, 80 X 66 X 22.5
Part #:
MPSB-080
Min. Order Qty: 1
Brand: HPSI
HPSI

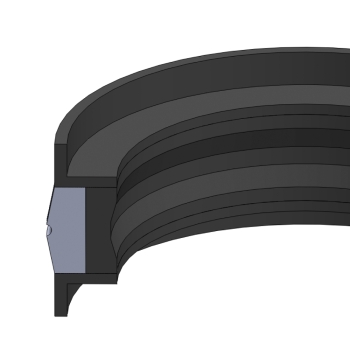

The MBSP 3-Piece Piston Seal is a double-acting piston seal assembly featuring a nitrile/fabric sealing element combined with two split bearings. Its three-piece construction provides low-friction sealing and high strength for hydraulic piston applications. Designed for use with both one-piece and two-piece pistons, the MBSP provides a durable sealing solution for a range of hydraulic equipment.
| Bore Diameter | : | 80 mm |
| Groove Diameter | : | 66 mm |
| Groove Width | : | 22.5 mm |
| Material | : | Nitrile/Fabric/Acetal |
| Part Number | : | (Prefix)-(Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -22° to 212°F |
- Nitrile/fabric sealing element provides durable sealing performance
- Two split bearings provide piston support
- Three-piece construction combines the seal with two bearings
- Low-friction design supports smooth piston movement
- High-strength construction supports demanding applications
- Double-acting design supports bidirectional piston sealing
- Designed for both one-piece and two-piece pistons
