MPSN-190X169.0X8.1

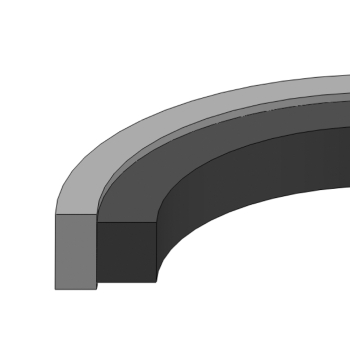

MPSN Nylon Step Cut Piston Seal, 190 X 169 X 8.1
Part #:
MPSN-190X169.0X8.1
Min. Order Qty: 1
Brand: HPSI
HPSI
The MPSN double-acting piston seal is built for heavy-duty hydraulic applications. Its compact profile offers resistance to shock loads, high abrasion, and extrusion, ensuring durability in demanding conditions. The split design enables easy installation on solid pistons.
| Bore Diameter | : | 190 mm |
| Groove Diameter | : | 169 mm |
| Groove Width | : | 8.1 mm |
| Material | : | Nylon/Nitrile |
| Part Number | : | (Prefix)-(Bore Dia)X(Groove Dia)X(Groove W) |
| Pressure Range | : | 0 TO 7,250 PSI |
| Temperature Range | : | -22° to 230°F |
- MPSN style
- Double acting
- Step cut
- 2pc metric piston seal
- Extreme strength and resistance
- Heat stabilized thermoplastic cap
- Nitrile loader
