MPSU-50X39.0X4.2
MPSU 2pc Piston Seal, 50 X 39.0 X 4.0
Part #:
MPSU-50X39.0X4.2
Min. Order Qty: 1
Brand: HPSI
HPSI

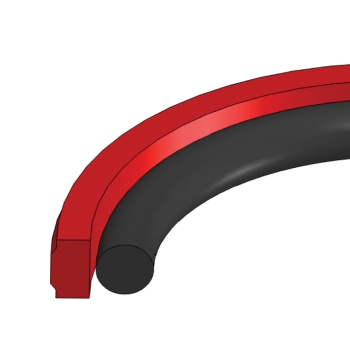

The MPSU 2-Piece Piston Seal is molded from durable, wear-resistant polyester enhanced with 5% glass fiber and 5% PTFE, providing a strong and durable sealing material. The two-piece assembly uses a 70A nitrile O-ring as the energizer to maintain reliable sealing contact. Fully interchangeable with seals of the same dimensions, the MPSU provides a versatile sealing solution for hydraulic piston applications.
| Bore Diameter | : | 50 mm |
| Groove Diameter | : | 39.0 mm |
| Groove Width | : | 4.0 mm |
| Material | : | Glass/PTFE Filled Polyester/Nitrile |
| Part Number | : | (Prefix)-(Bore Dia)X(Groove Dia)X(Groove W) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -40° to 230°F |
- Glass/PTFE filled polyester construction provides durable sealing performance
- 5% glass fiber reinforcement enhances material strength
- 5% PTFE reinforcement supports wear resistance and low-friction performance
- 70A nitrile O-ring energizer maintains reliable sealing contact
- Two-piece construction combines the polyester seal and nitrile O-ring
- Fully interchangeable with seals of the same dimensions
- Wear-resistant construction supports long-lasting piston sealing
