MR-80X95X13TB
MR-TB Rod U-Seal w/Back-Up Ring, 80 X 95 X 13
Part #:
MR-80X95X13TB
Min. Order Qty: 1
Brand: HPSI
HPSI

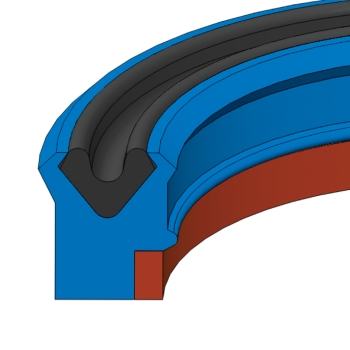

The MR-TB Rod U-Seal w/ Back-Up Ring is the metric counterpart to the R-TB Rod U-Seal, engineered for demanding high-pressure hydraulic applications. Molded from high-performance polyurethane, it features an energizer ring for improved low-pressure sealing, an additional lip to retain lubrication and block contaminants, and a hard plastic anti-extrusion back-up ring on the inside diameter.
| Height | : | 13 mm |
| Inside Diameter | : | 80 mm |
| Material | : | Urethane/Polyacetal |
| Outside Diameter | : | 95 mm |
| Part Number | : | (Prefix)-(ID)X(OD)X(H)(Suffix) |
| Pressure Range | : | 0 TO 6,000 PSI |
| Temperature Range | : | -40° to 230°F |
- Metric counterpart to the R-TB Rod U-Seal
- Energizer ring maintains consistent sealing force across the pressure range
- Additional sealing lip retains lubrication and blocks contaminants
- Hard plastic back-up ring improves extrusion resistance
- High-performance polyurethane provides excellent wear resistance
