O-RING CHART

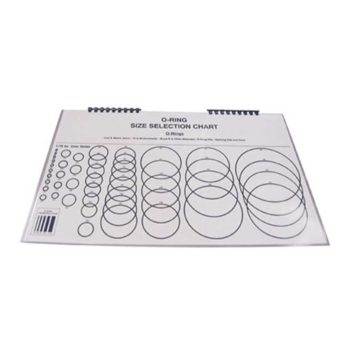

O-Ring Size Identification Chart
Brand: HPSI
HPSI
This O-Ring Chart is a convenient reference tool for identifying standard O-ring sizes by dash number and cross-section. It helps users quickly select and verify O-ring sizes during assembly, hydraulic repair, and inventory management. Ideal for maintenance technicians, repair shops, and anyone who regularly works with O-ring seals.
| Size Range | : | 1/16" C/S": 003-047; 3/32" C/S: 108-163; 1/8" C/S: 202-258; 3/16" C/S: 325-357; 1/4" C/S: 425-440; Boss Tube Fittings: 901-932 |
| System of Measurement | : | Inch |
