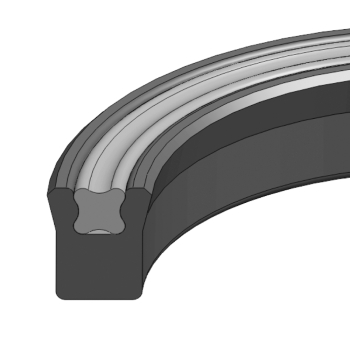

P25-2.50-37DV
P-V Fluorocarbon U-Seal, 2-1/2 X 3 X 3/8, Deep Style
Brand: HPSI
HPSI
The P-V Polyseal Fluorocarbon U-Seal combines the proven Polyseal design with genuine DuPont™ Viton® fluorocarbon for demanding hydraulic applications. A four-lobed expander ring maintains consistent sealing force across the operating pressure range while enhancing low-pressure sealing performance to help prevent leakage ("weeping"). Viton® offers excellent compatibility with a wide range of fluids and continuous operating temperatures from -20°F to +400°F, making it ideal for high-temperature and chemically demanding environments.
The Deep profile uses the same Type D sealing lip as the Standard profile but has a greater seal height than cross section, resulting in a rectangular geometry. This profile is designed for applications requiring a deeper seal configuration.
Typical Part Number: P25-2.50-37DV
| Cross Section | : | 1/4 in |
| Height | : | 3/8 in |
| Inside Diameter | : | 2-1/2 in |
| Lip Style | : | Deep |
| Material | : | 90A Dupon Viton® |
| Outside Diameter | : | 3 in |
| Part Number | : | (Prefix)(C/S)-(ID)-(H) |
| Pressure Range | : | 0 TO 2,000 PSI |
| Temperature Range | : | -20° to 400°F |
- Rectangular profile accommodates deeper seal glands
- Type D sealing lip provides dependable hydraulic sealing
- Four-lobed expander ring maintains consistent sealing force across the pressure range
- Enhances low-pressure sealing to help prevent leakage ("weeping")
- Genuine DuPont™ Viton® withstands high temperatures and aggressive fluids
