PS1400-28
PS1400 Glass-Filled PTFE Piston Seal, 1.750 X 1.358 X 0.122
Part #:
PS1400-28
Min. Order Qty: 1
Brand: HPSI
HPSI

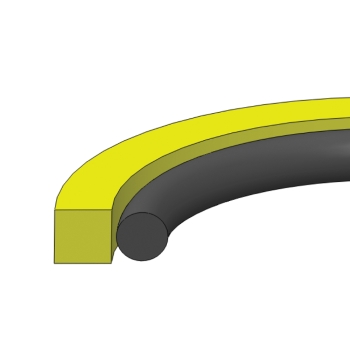

The PS1400 Glass-Filled PTFE Piston Seal is a compact, two-piece piston seal assembly designed for double-acting hydraulic applications. Its glass-filled PTFE seal ring works with a rubber energizer to provide low-friction, high-strength sealing while maintaining reliable contact with dynamic surfaces. The PS1400 is engineered to fit ANSI/B93.32-1973 groove standards.
| Bore Diameter | : | 1.750 in |
| Groove Diameter | : | 1.358 in |
| Groove Width | : | 0.122 in |
| Material | : | Glass Filled PTFE/Nitrile |
| Part Number | : | (Piston Seal)(Type of Seal)-(Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -40° to 220°F |
- Glass-filled PTFE seal ring provides low-friction performance
- Rubber energizer maintains sealing contact with dynamic surfaces
- Two-piece construction combines the PTFE seal ring and rubber energizer
- Double-acting design supports bidirectional piston sealing
- Compact profile fits ANSI/B93.32-1973 groove standards
- High-strength construction supports demanding hydraulic applications
