PS1500-36
PS1500 Polyurethane Piston Seal, 2.250 X 1.858 X 0.129
Part #:
PS1500-36
Min. Order Qty: 1
Brand: HPSI
HPSI

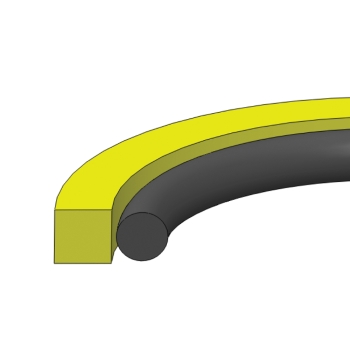

The PS1500 Polyurethane Piston Seal is a two-piece piston seal assembly molded from durable 60 Shore D polyurethane and fully interchangeable with PS1400 PTFE piston seals. A 0.002" molybdenum band is integrated into the outer diameter during molding to reduce friction. The polyurethane seal stretches easily over the piston and quickly recovers its shape, eliminating the cold-flow issues commonly associated with PTFE seals.
| Bore Diameter | : | 2.250 in |
| Groove Diameter | : | 1.858 in |
| Groove Width | : | 0.129 in |
| Material | : | Polyurethane/Nitrile |
| Part Number | : | (Piston Seal)(Type of Seal)-(Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -65° to 220°F |
- 60 Shore D polyurethane construction provides durable sealing performance
- Two-piece piston seal assembly provides a complete sealing solution
- Fully interchangeable with PS1400 PTFE piston seals
- 0.002" molybdenum band on the outer diameter reduces friction
- Stretches easily over the piston for installation
- Quickly recovers its original shape after installation
- Eliminates cold-flow issues commonly associated with PTFE seals
