PS1800-64

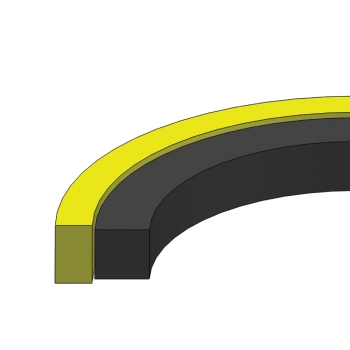

PS1800 Glass-Filled PTFE Piston Seal, 4.000 X 3.440 X 0.284
Part #:
PS1800-64
Min. Order Qty: 1
Brand: HPSI
HPSI
The PS1800 Glass-Filled PTFE Piston Seal is a compact, two-piece piston seal assembly featuring a 15% glass-filled PTFE seal ring and 70A nitrile energizer. Its low-friction, high-strength construction provides reliable double-acting piston sealing and is designed to meet ANSI/B93.32-1973 groove requirements for demanding hydraulic applications.
| Bore Diameter | : | 4.000 in |
| Groove Diameter | : | 3.440 in |
| Groove Width | : | 0.284 in |
| Material | : | Glass Filled PTFE/Nitrile |
| Part Number | : | (Piston Seal)(Type of Seal)-(Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -40° to 220°F |
- 15% glass-filled PTFE seal ring provides low-friction performance
- 70A nitrile energizer maintains reliable sealing contact
- Two-piece construction combines the PTFE seal ring and nitrile energizer
- Double-acting design supports bidirectional piston sealing
- Compact profile fits ANSI/B93.32-1973 groove requirements
- High-strength construction supports demanding hydraulic applications
