PSA-59-2500A

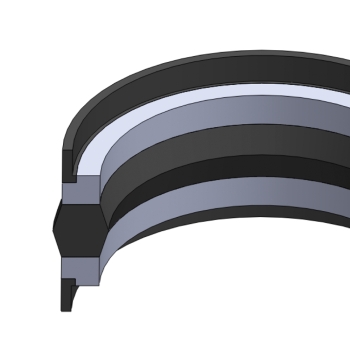

PSA-59 3pc Piston Seal Assembly, 2.500 X 1.875 X 0.250
Part #:
PSA-59-2500A
Min. Order Qty: 1
Brand: HPSI
HPSI
The PSA-59 piston seal assembly is designed for 2 piece pistons. The seal is a molded nitrile rubber element with bonded rubberized fabric reinforcement and two anti-extrusion polyacetal bearings.
| Bore Diameter | : | 2.500 in |
| Groove Diameter | : | 1.875 in |
| Groove Width | : | 0.250 in |
| Material | : | Fabric Reinforced Nitrile/Polyacetal |
| Part Number | : | (Prefix)-(Type of Seal)-(Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -22° to 212°F |
- PSA-59 style
- 3pc piston seal
- Fabric reinforced seal
- 2 polyacetal bearings
