R21-1.75-37BHT

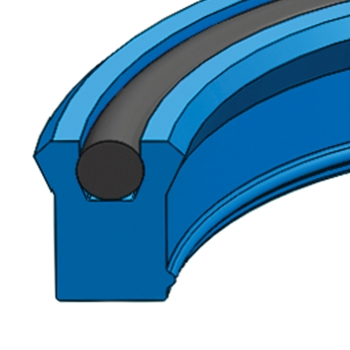

R-BHT Urethane Loaded Rod U-Seal, 1-3/4 X 2-3/16 X 3/8
Part #:
R21-1.75-37BHT
Min. Order Qty: 1
Brand: HPSI
HPSI
The R-BHT Loaded Rod U-Seal is molded from high-performance polyurethane and designed for reliable hydraulic rod sealing across a wide pressure range. Its integrated expander improves low-pressure sealing, while the twin-lip design reduces friction and enhances seal stability for consistent performance and extended service life.
| Cross Section | : | 7/32 in |
| Height | : | 3/8 in |
| Inside Diameter | : | 1-3/4 in |
| Material | : | 95A Urethane |
| Outside Diameter | : | 2-3/16 in |
| Part Number | : | (Prefix)(CS)-(ID)-(H)(Suffix) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -40° to 225°F |
- High-performance polyurethane provides excellent wear resistance
- Integrated expander improves low-pressure sealing performance
- Twin-lip design reduces friction during operation
- Enhanced seal stability for consistent performance
- Suitable for demanding hydraulic rod sealing applications
