RMU15-1.37-24U
RMU Polyurethane U-Seal, 1-3/8 X 1-11/16 X 0.24
Part #:
RMU15-1.37-24U
Min. Order Qty: 1
Brand: HPSI
HPSI

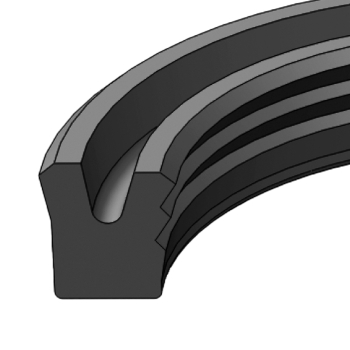

The RMU style multi-lip rod u-seal combines the pressure-compensating, uni-directional characteristics of a u-seal with the multi-lip sealing effectiveness of compression-type stacked packings. Made from premium materials, the RMU uses several sealing lip edges for dry rod performance while minimizing friction. The multi-lip design maintains a critical sealing edge even though increasing pressure moves the line of contact down towards the heel
| Cross Section | : | 5/32 in |
| Height | : | 0.24 in |
| Inside Diameter | : | 1-3/8 in |
| Material | : | 92A Urethane |
| Outside Diameter | : | 1-11/16 in |
| Part Number | : | (Prefix)(CS)-(ID)-(H)(Suffix) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -65° to 220°F |
- RMU-U style
- Multi-lip
