WH-375

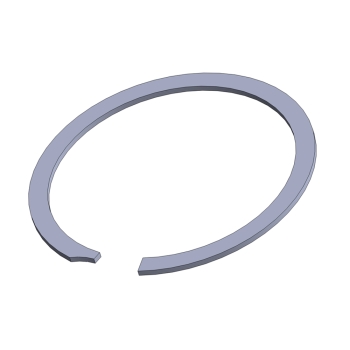

WH Steel Spiral Internal Retainer Ring, 3.894 X 0.061 X 0.198
Brand: HPSI
HPSI
Spiral Internal Retainer Rings are designed to securely retain components within a bore. Available in VH, WH, WHM, and WHT styles, these rings use a coiled design to provide strong, uniform retention while allowing for convenient installation and removal. Their design can eliminate the need for dedicated retaining-ring grooves or additional machining, depending on the application. Various styles and materials are available to accommodate different retention requirements.
| Free Outside Diameter | : | 3.894 in |
| Groove Diameter | : | 3.862 in |
| Groove Width | : | 0.068 in |
| Material | : | Steel |
| Radial Wall | : | 0.198 in |
| Ring Style | : | Spiral |
| Ring Thickness | : | 0.061 in |
| Ring Type | : | Internal |
