GP301500
GP Bronze Filled Piston Seal, 1.500 X 0.884 X 0.271
Part #:
GP301500
Min. Order Qty: 1
Brand: HPSI
HPSI

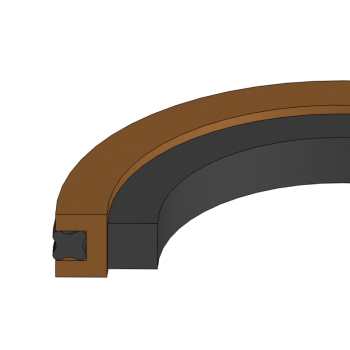

The GP Bronze-Filled PTFE Piston Seal is a three-piece piston seal assembly designed for bidirectional, low-friction sealing with enhanced stability and excellent leakage control. It features a 40% bronze-filled PTFE seal, 70A nitrile energizer, and 70A nitrile Quad-Ring®. The square-cut energizer provides effective low-pressure sealing while helping prevent backside leakage. The GP seal can also reliably separate different fluids on either side, making it suitable for gas/liquid sealing combinations.
| Bore Diameter | : | 1.500 in |
| Groove Diameter | : | 0.884 in |
| Groove Width | : | 0.288 in |
| Material | : | Bronze Filled PTFE/Nitrile |
| Part Number | : | (Piston Seal)(C/S)(Bore Size) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -40° to 220°F |
- 40% bronze-filled PTFE seal provides low-friction sealing performance
- 70A nitrile energizer provides reliable sealing force
- 70A nitrile Quad-Ring® provides additional energizing support
- Three-piece construction combines the PTFE seal, nitrile energizer, and Quad-Ring®
- Bidirectional design supports sealing in both directions
- Square-cut energizer provides effective low-pressure sealing
- Helps prevent backside leakage
- Enhanced stability supports reliable dynamic sealing
- Provides excellent leakage control
- Can separate different fluids on either side of the seal
