H-0250

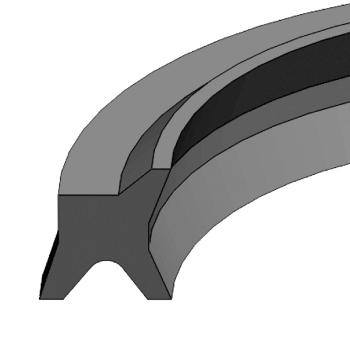

H Urethane Snap-in Rod Wiper Ring, 0.250 X .552 X 0.194

Part #:
H-0250
Min. Order Qty: 1

Brand: HPSI

loading
loading

HPSI

  • Provides additional protection against minimal leakage past the primary rod seal.
  • Easy to install in rod grooves for quick replacement and maintenance.
  • Available in 90A high temp urethane rated up to 220°F for elevated temperature applications.
  • Helps protect internal seals and packing by reducing contamination and leakage.

H Wiper Rings are light-duty, snap-in rod wipers designed to effectively remove contaminants while adding an extra layer of leakage protection. Featuring a secondary sealing lip, these wipers help prevent even minimal leakage past the primary rod seal, ensuring cleaner rod operation and protecting internal components. H wipers are available in fluorocarbon, urethane (including a 90A high-temperature option rated to 250°F), and nitrile, providing flexibility for a wide range of applications and environmental conditions.

Height      :      .194 in
Inside Diameter      :      0.25 in
Material      :      90A Urethane
Outside Diameter      :      .552 in
Part Number      :      (Prefix)-(Rod Dia.)-(Material)
Style      :      Snap-in
Temperature Range      :      -65° TO +220°F
  • Provides additional protection against minimal leakage past the primary rod seal.
  • Easy to install in rod grooves for quick replacement and maintenance.
  • Available in fluorocarbon, urethane (including HT), and nitrile for varied environments.
  • Helps protect internal seals and packing by reducing contamination and leakage.
