TR-341
TR Nitrile/Nylon Rod T-Seal, 3-1/2 ID (-039)
Part #:
TR-341
Min. Order Qty: 1
Brand: HPSI
HPSI

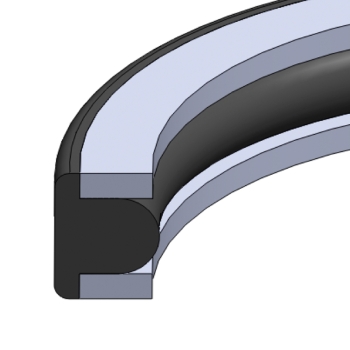

The TR Rod T-Seal is designed to fit standard O-ring grooves while providing improved sealing performance in hydraulic rod applications. Combining a resilient rubber sealing expander with split nylon back-up rings, it offers superior extrusion resistance and resists spiral failure at higher pressures than standard O-rings. Its robust design delivers reliable sealing performance and extended service life in demanding hydraulic systems.
| Inside Diameter | : | 3-1/2 in |
| Material | : | Nitrile/Nylon |
| Part Number | : | (Prefix)(O-Ring Groove) |
| Pressure Range | : | 0 TO 5,000 PSI |
| Temperature Range | : | -35° to 220°F |
- Fits standard O-ring grooves for easy installation
- Rubber sealing expander provides reliable sealing performance
- Split nylon back-up rings improve extrusion resistance
- Resists spiral failure better than standard O-rings
- Suitable for higher-pressure hydraulic applications
- O-ring dash# -039
